Available for hire or rent from AAH Australia, the 13.7m / 45ft diesel straight boom lift delivers reliable performance with a maximum working height of around 15.7 metres and a horizontal reach of over 11 metres. Built for outdoor worksites, it offers smooth drive control, powerful 4WD options, and excellent up-and-over clearance. Durable and versatile, the S-45 is ideal for construction, maintenance, and industrial applications where safe, efficient access to elevated work areas is required.

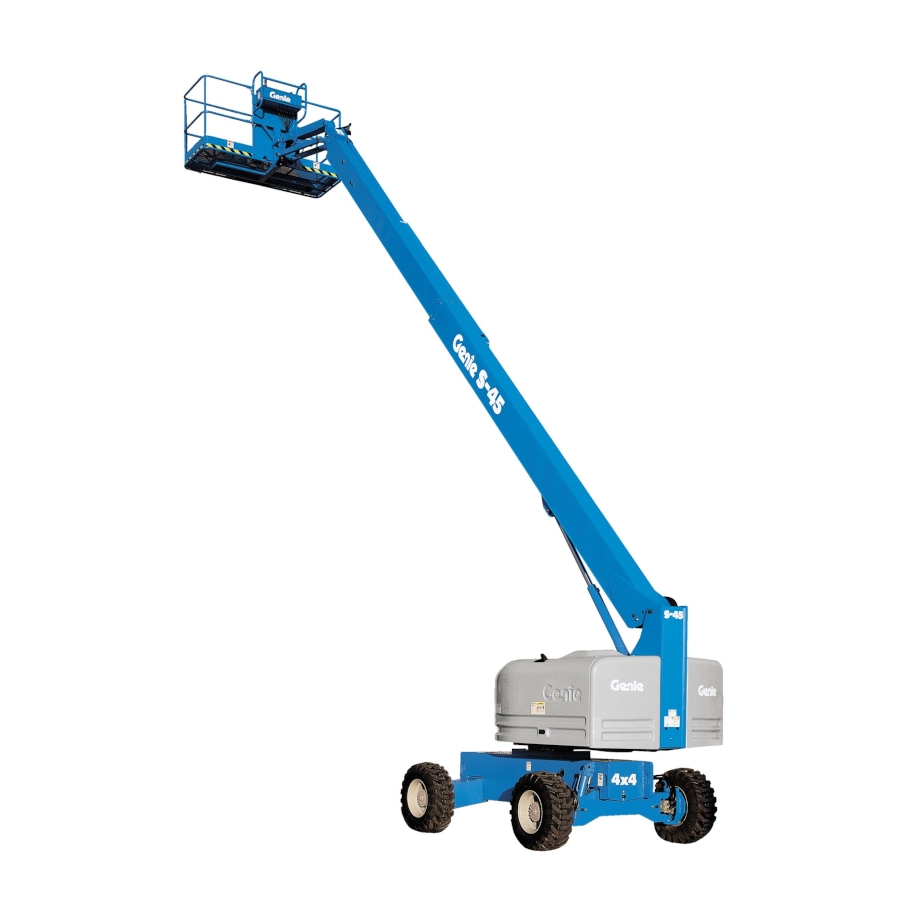

Straight Boom Lift – Diesel – 13.7m (45ft)
AAH has a range of straight boom lifts available for hire including diesel and electric models. AAH has branchs in Sydney, Melbourne, Brisbane and Perth. Contact AAH to discuss your requirements.
MACHINE SPECIFICATIONS:
- Platform Height – 14m / 45ft
- Working Height – 15.72m / 51.6ft

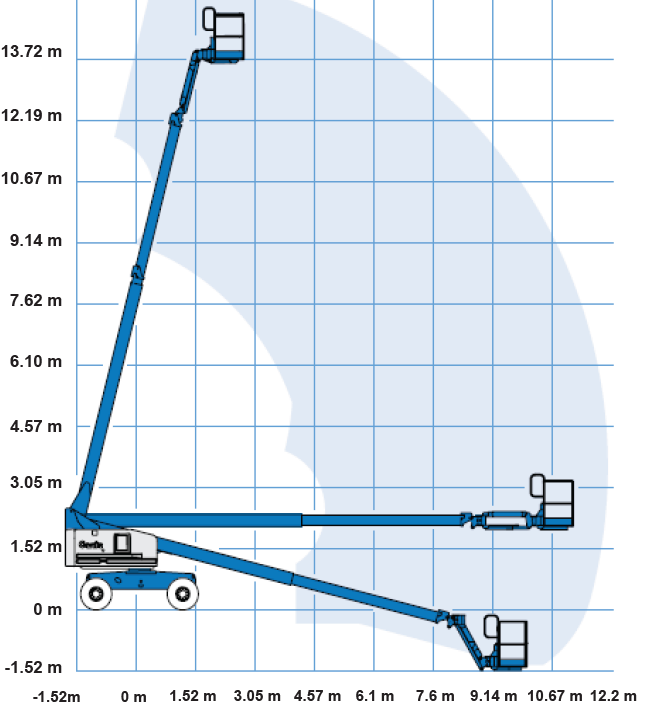

- Horizontal reach – 11.18m
- Stowed Height – 2.49m
- Stowed Length – 8.48m
- Unit Width – 2.30m
- Platform Size – 2.44 x 0.91m
- Max Lift Capacity – 227kg
- Unit Weight – 7018kg
- Suitable Terrain – Rough & Smooth
- Click For Spec Sheet
- Measurements are approximate; images are for illustration only.
Additional information
| Platform Height | 14m / 45 |
|---|---|
| Working Height | 15.72m / 51.6ft |
| Max Lift Capacity | 227kg |
| Horizontal Reach | 11.18m |
| Platform Size | 2.44 x 0.91m |
| Stowed Height | 2.49m |
| Stowed Length | 8.48m |
| Unit Width | 2.30m |
| Unit Weight | 7018kg |
| Power Type | Diesel |
| Suitable Terrain | Smooth, Rough, Smooth/Rough |
