Available for hire or rent from AAH Australia, the 15.5 m / 51 ft diesel articulating boom lift delivers reliable power and performance for demanding outdoor applications. Its articulating design provides excellent up-and-over reach, while the rotating jib adds industry-leading horizontal flexibility together with strong vertical access. Built for productivity, it offers the durability and endurance needed for tough job sites. Despite its power, the compact dimensions allow it to maneuver efficiently around obstacles and access overhead tasks in areas where space is limited.

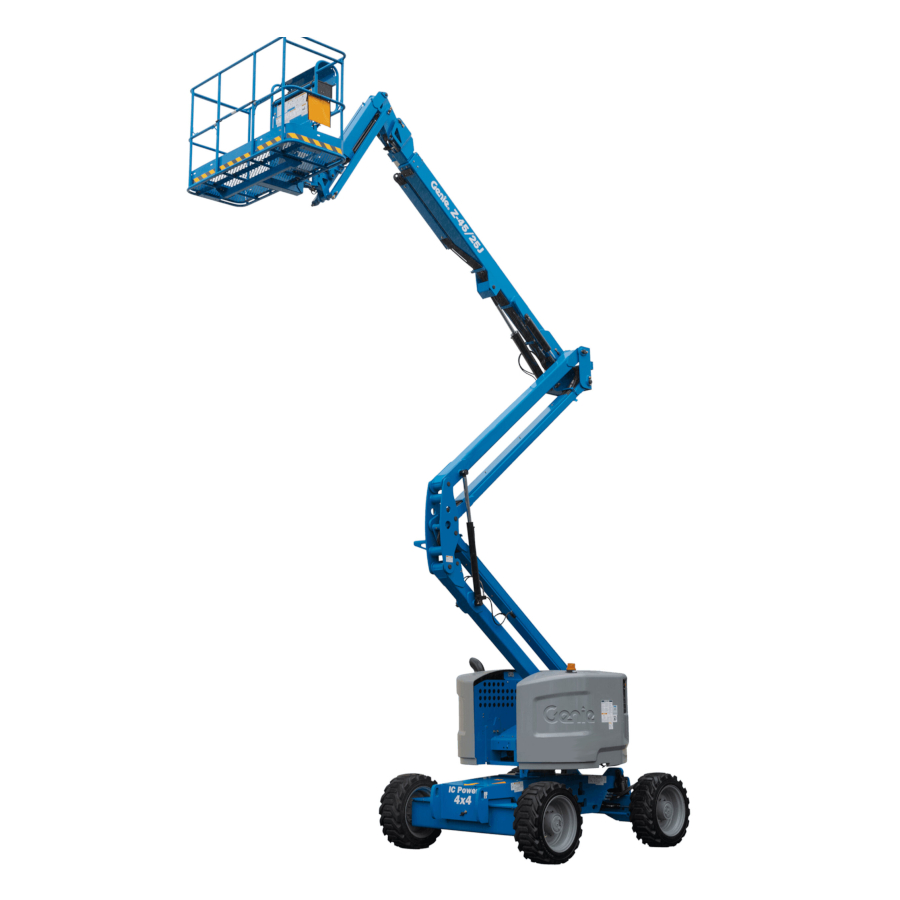

Knuckle Boom Lift – Diesel- 15.5m (51ft)
AAH has a range of knuckle boom lifts available for immediate hire / rent, with branch locations in Sydney, Melbourne, Brisbane and Perth. Contact us to discuss your requirements.
MACHINE SPECIFICATIONS:
- Platform Height – 15.59m / 51ft
- Working Height – 17.59m / 58ft
- Horizontal reach – 9.37m
- Up & Over Height – 7.39m
- Stowed Height – 2.13m
- Stowed Length – 7.58m
- Unit Width – 2.29m
- Platform Size – 1.83 x 0.76m
- Max Lift Capacity – 227kg
- Unit Weight – 7404kg
- Suitable Terrain – Rough
- Click Here To Download Spec Sheets
- Measurements are approximate; images are for illustration only.
Additional information
| Platform Height | 15.59m / 51ft |
|---|---|
| Working Height | 17.59m / 58ft |
| Horizontal Reach | 9.37m |
| Up & Over Height | 7.39m |
| Max Lift Capacity | 227kg |
| Platform Size | 1.83 x 0.76m |
| Stowed Height | 2.13m |
| Stowed Length | 7.58m |
| Unit Width | 2.29m |
| Unit Weight | 7404kg |
| Max Lift Capacity | 200 to 250kg |
| Suitable Terrain | Smooth, Rough, Smooth/Rough |
| Power Type | Diesel |
