Available for hire or rent from AAH Australia, the 38m / 125ft articulating boom lift delivers unmatched reach and versatility for the toughest elevated tasks. With a working height of over 40 metres and industry-leading up-and-over access, it’s built to tackle challenging environments with ease. Fast lift speeds, a rotating jib, and excellent maneuverability ensure maximum productivity, while rugged four-wheel drive and oscillating axles keep performance strong on rough terrain.

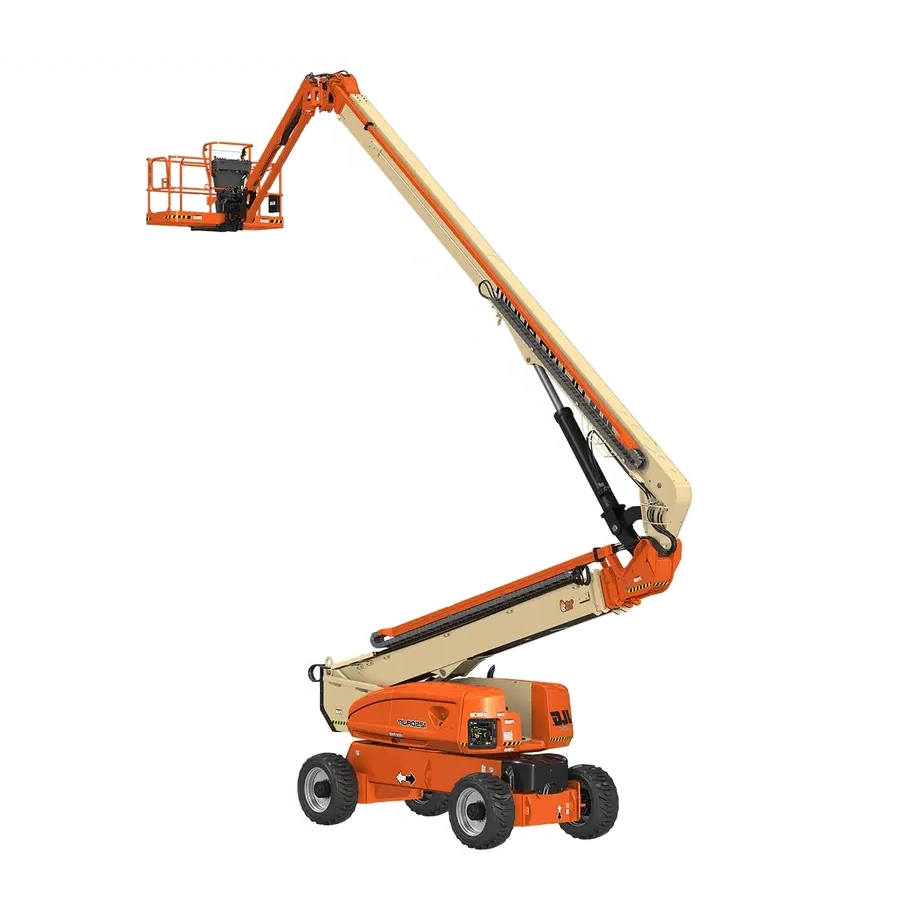

Knuckle Boom Lift – Diesel- 38m (125ft)
AAH has a range of knuckle boom lifts available for immediate hire / rent, with branch locations in Sydney, Melbourne, Brisbane and Perth. Contact us to discuss your requirements.
MACHINE SPECIFICATIONS:
- Platform Height – 38.3m / 125ft
- Working Height – 40m / 92ft
- Horizontal reach – 19.25m
- Up & Over Height – 18.44m
- Stowed Height – 3.02m
- Stowed Length – 11.45m
- Unit Width – 2.49m
- Unit Width (Axles Extended) – 3.81m
- Platform Size – 2.44 x 0.91m
- Max Lift Capacity (unrestricted) – 227kg
- Max Lift Capacity (restricted) – 454kg
- Unit Weight – 19958kg
- Suitable Terrain – Rough
- Click Here To Download Spec Sheet
- Measurements are approximate; images are for illustration only.
Additional information
| Platform Height | 38.3m / 125ft |
|---|---|
| Working Height | 40m / 92ft |
| Horizontal Reach | 19.25m |
| Up & Over Height | 18.44m |
| Max Lift Capacity | 227kg / 454kg |
| Stowed Height | 3.02m |
| Stowed Length | 11.45m |
| Unit Width | 2.49m / 3.81m |
| Unit Weight | 19958kg |
| Platform Height | 35 to 40m |
| Max Lift Capacity | 200 to 250kg, 250 to 500kg |
| Suitable Terrain | Smooth, Rough, Smooth/Rough |
| Power Type | Diesel |
