Available for hire or rent from AAH Australia, the 9m / 30ft electric articulating boom lift is a quiet, emission-free solution ideal for sensitive, congested and urban jobsites. For increased versatility it features a rotating jib offering industry-leading horizontal rotation as well as standard vertical reach. Narrow dimensions make it easy to drive through standard doorways, to work around obstacles and access overhead tasks from aisles or areas where space is limited.

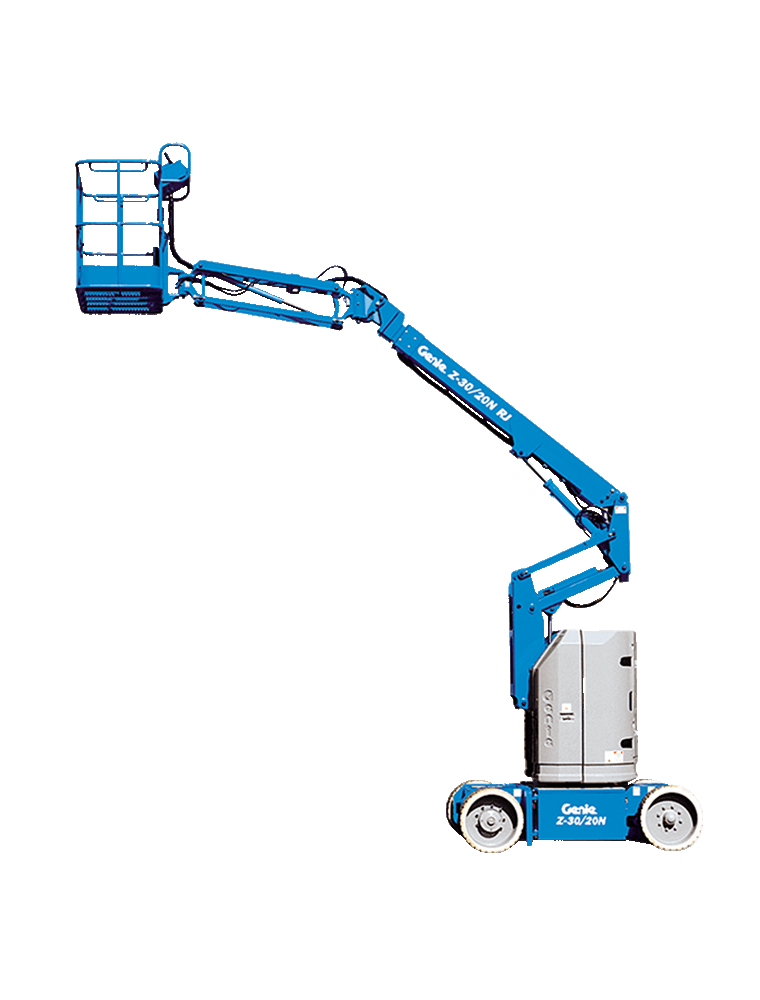

Knuckle Boom Lift – Electric – 9m (30ft)
AAH has a large range of Knuckle Boom Lifts available for immediate hire / rent. We have branch locations in Sydney, Melbourne, Brisbane and Perth. Contact us to discuss your requirements.
MACHINE SPECIFICATIONS:
- Platform Height – 9m / 30ft
- Working Height – 10.89m / 36ft
- Horizontal reach – 6.25m
- Up & Over Height – 3.86
- Stowed Height – 2.00m
- Standard Deck – 5.31m
- Unit Width – 1.20m
- Platform Size – 1.19 x 0.76m
- Max Lift Capacity – 227kg
- Unit Weight – 6622kg
- Suitable Terrain – Smooth
- Click To Download Spec Sheet
- Measurements are approximate; images are for illustration only.
Additional information
| Platform Height | 9m / 30ft |
|---|---|
| Working Height | 10.89m / 36ft |
| Horizontal Reach | 6.25m |
| Up & Over Height | 3.86m |
| Max Lift Capacity | 227kg |
| Platform Size | 1.19 x 0.76m |
| Stowed Height | 2.00m |
| Stowed Length | 5.31m |
| Unit Width | 1.20m |
| Unit Weight | 6622kg |
| Max Lift Capacity | 200 to 250kg |
| Suitable Terrain | Smooth |
| Power Type | Electric |
