Available for hire or rent from AAH Australia, the 19.8m / 65ft diesel straight boom lift delivers reliable performance with a maximum working height of 21.8 metres and an outreach of 17.1 metres. Built for tough job sites, it offers excellent manoeuvrability, powerful 4WD, and smooth controls for precise positioning. Ideal for construction, maintenance, and industrial applications, this machine is a versatile choice for safe and efficient access at height.

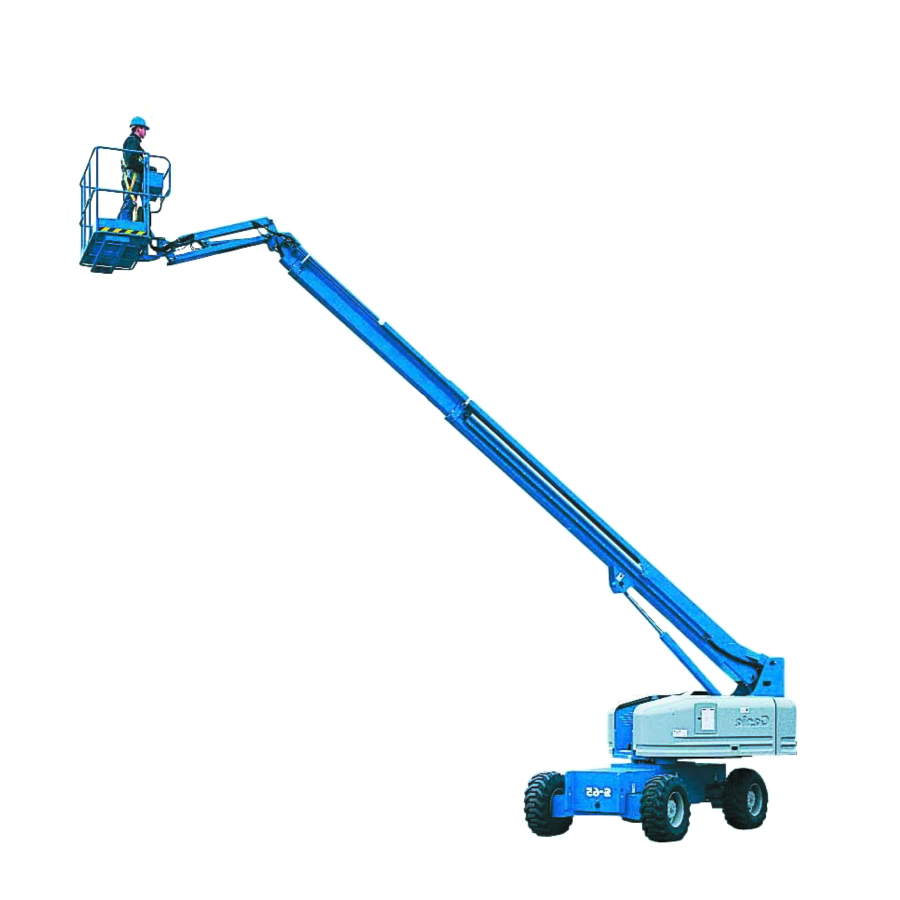

Straight Boom Lift – Diesel – 19.8m (65ft)
AAH has a range of straight boom lifts available for hire / rent including diesel and electric variants. We have branch locations in Sydney, Melbourne, Brisbane and Perth. Contact AAH to discuss your requirements.
MACHINE SPECIFICATIONS:
- Platform Height – 19.8m / 65ft
- Working Height – 21.8m / 71.5ft
- Horizontal reach – 17.1m
- Stowed Height – 2.72m
- Stowed Length – 8.50m
- Unit Width – 2.49m
- Platform Size – 2.44 x 0.91m
- Max Lift Capacity – 227kg
- Unit Weight – 10668kg
- Suitable Terrain – Rough & Smooth
- Click To Download Spec Sheet
- Measurements are approximate; images are for illustration only.
Additional information
| Platform Height | 19.8m / 65ft |
|---|---|
| Working Height | 21.8m / 71.5ft |
| Max Lift Capacity | 227kg |
| Horizontal Reach | 17.10m |
| Platform Size | 2.44 x 0.91m |
| Stowed Height | 2.72m |
| Stowed Length | 9.50m |
| Unit Width | 2.49m |
| Unit Weight | 10668kg |
| Power Type | Diesel |
| Suitable Terrain | Smooth, Rough, Smooth/Rough |
